Description

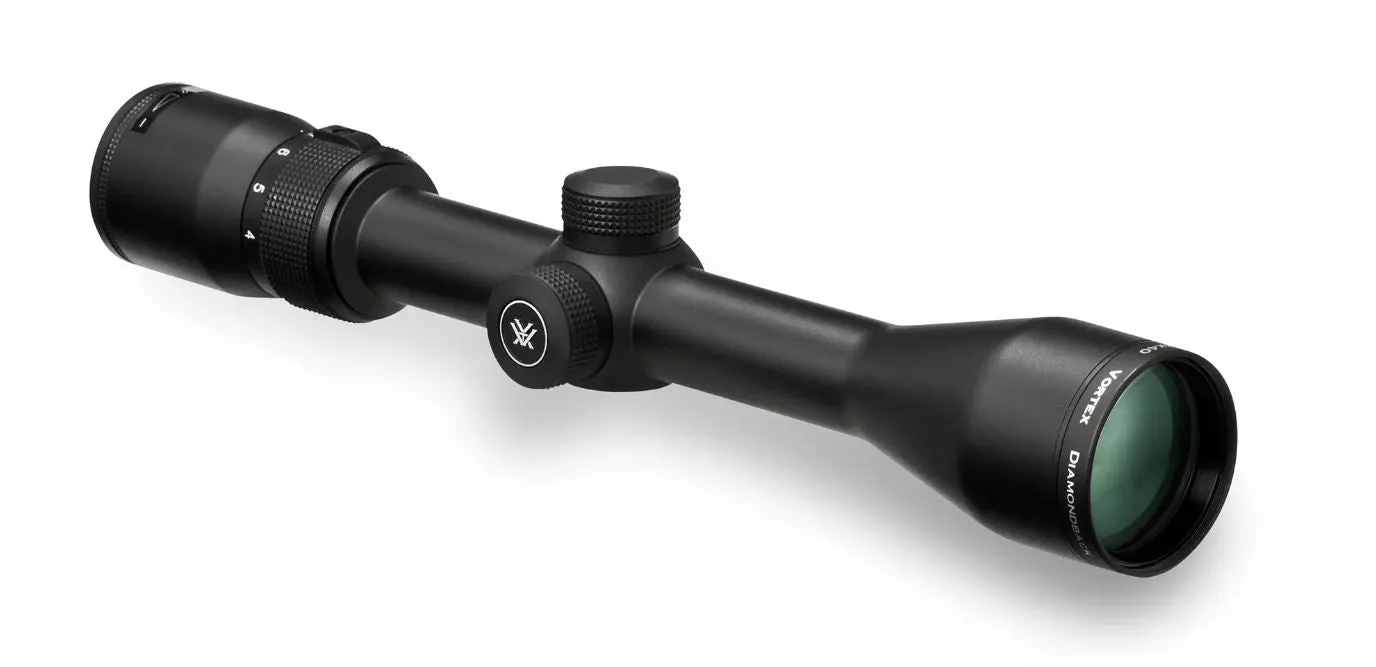

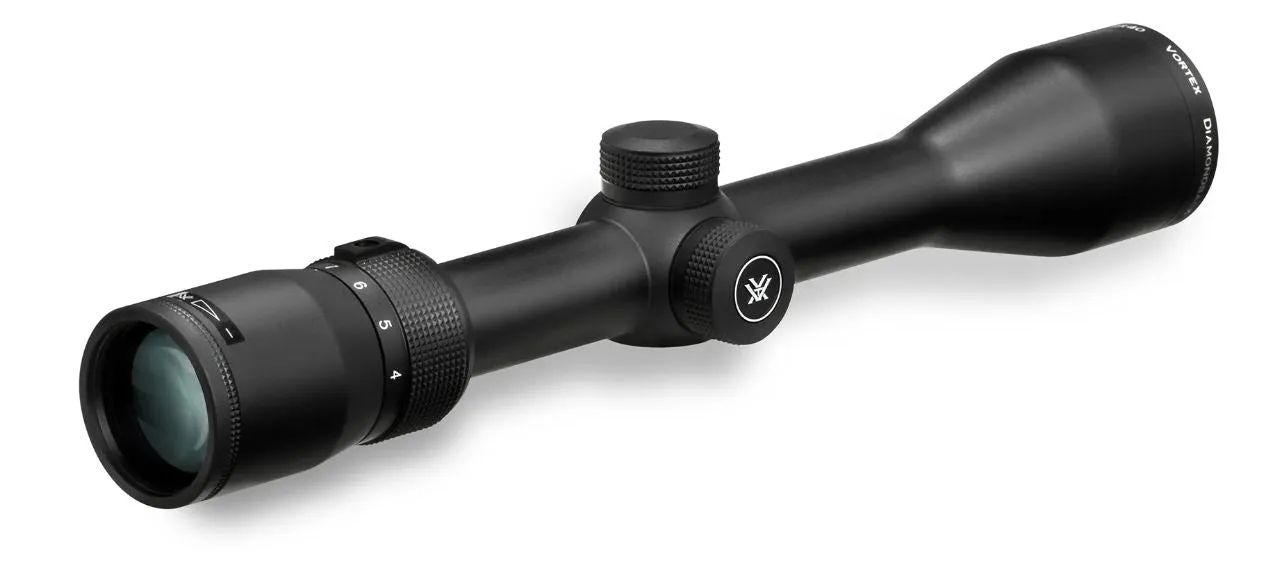

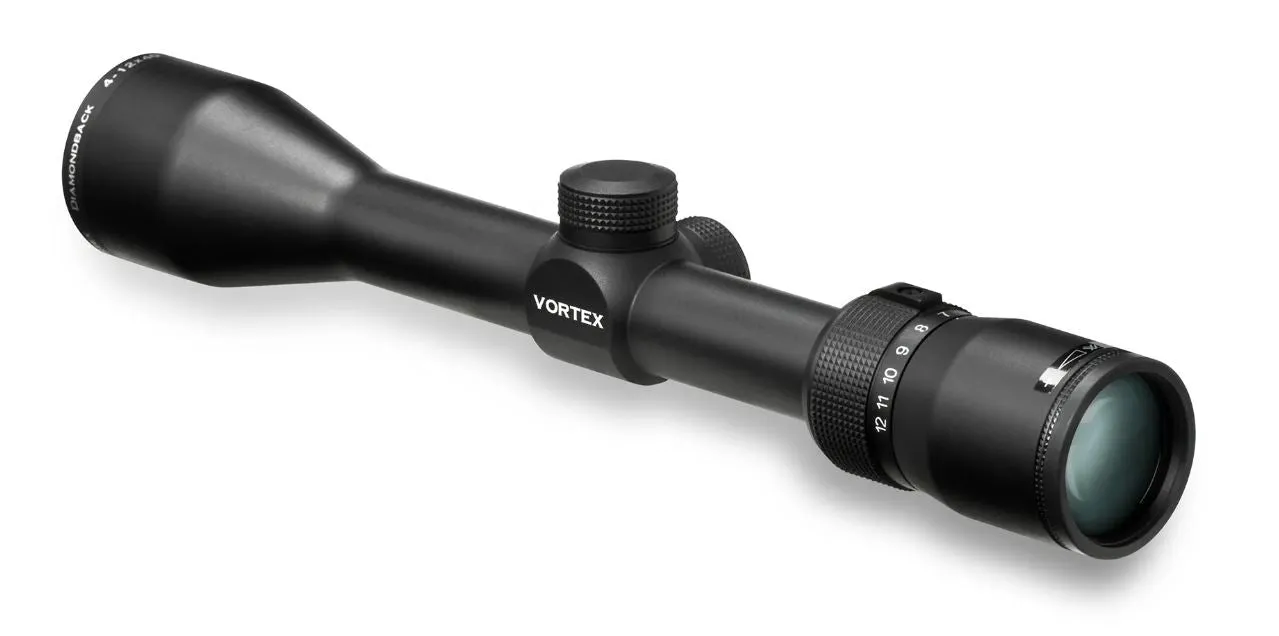

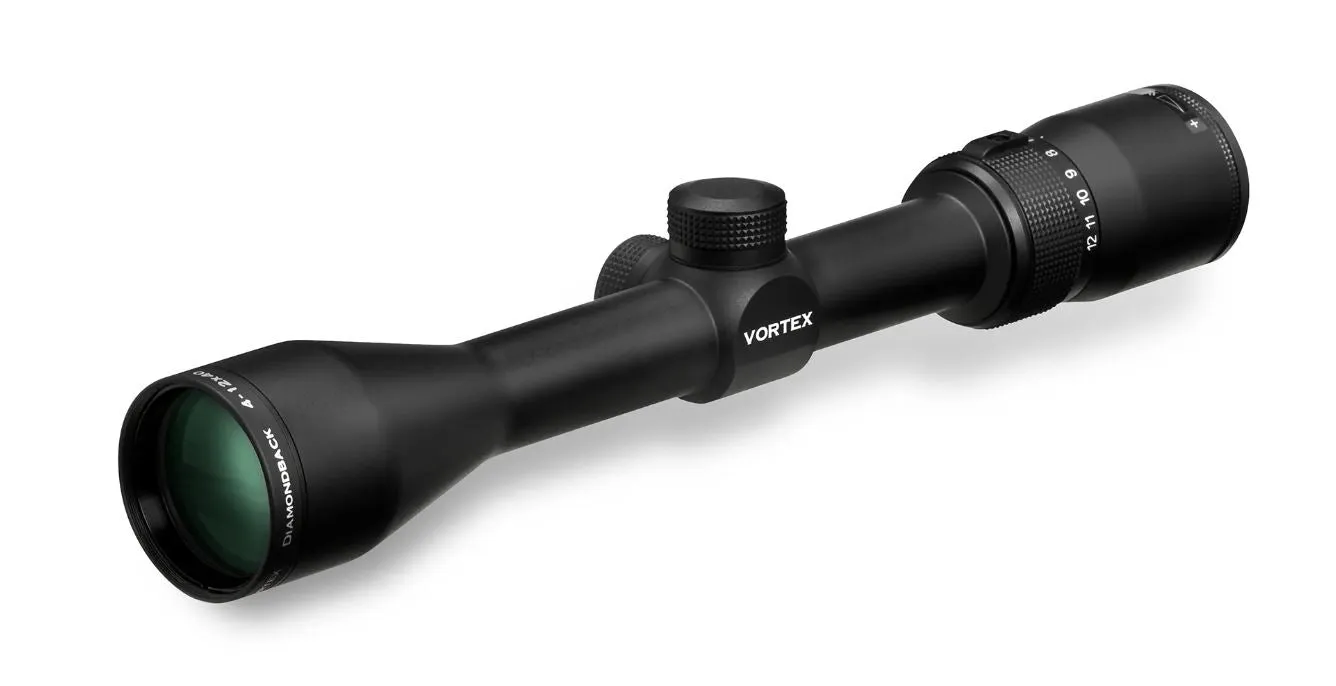

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Diamondback 4-12x40 Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.0 | 2.46 | 2.15 | 5.85 | 3.0 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.89 | 1.69 |
Included in the Box
- Removable lens covers
- Lens cloth
Specs
- Magnification 4-12x
- Objective Lens Diameter 40 mm
- Eye Relief 3.1 inches
- Field of View 32.4-11.3 ft/100 yds
- Tube Size 1 inch
- Turret Style Capped
- Adjustment Graduation 1/4 MOA
- Travel Per Rotation 15 MOA
- Max Elevation Adjustment 60 MOA
- Max Windage Adjustment 60 MOA
- Parallax Setting 100 yards
- Length 12 inches
- Weight 14.6 oz
Optical Features
- Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

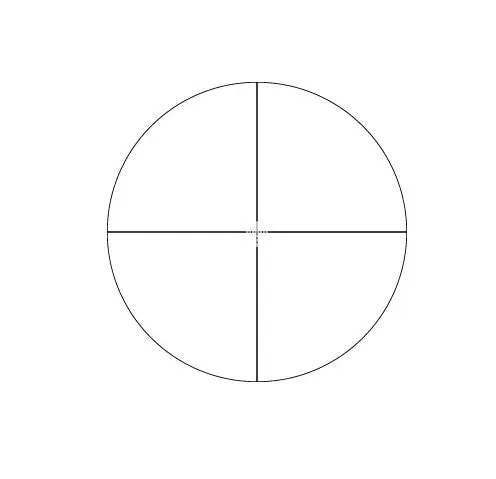

- Second Focal Plane Reticle: Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Construction Features
- Tube Size: 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
- Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
- Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
- Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof: Rugged construction withstands recoil and impact.
- Hard Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- Capped Reset Turrets: Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
Internal Mechanism Design Features
- Precision-Glide Erector System: This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.
Convenience Features
- Fast Focus Eyepiece: Allows quick and easy reticle focusing.
